Overview

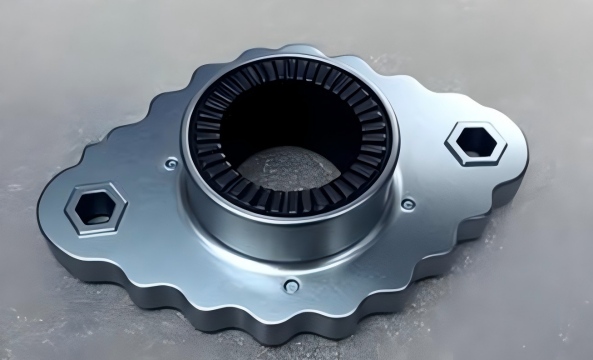

This Precision Stamped Flange Bushing is a prime example of our advanced metal forming capabilities. By combining Fine Blanking and Deep Drawing technologies, we produce complex, high-strength components that meet the most demanding industrial standards.
Technical Specifications
• Process: Progressive Die Stamping / Fine Blanking.
• Features: Integrated central hub (bushing), wavy outer profile for specialized fit, and precision internal teeth/splines.
• Tolerances: Achieves ±0.02mm on critical dimensions.
• Surface Quality: 100% smooth shear edges on the outer profile, eliminating the need for secondary grinding.
Materials Available
• Carbon Steel: SPHC, S50C (Heat treatable).
• Alloy Steel: For high-wear applications.
• Stainless Steel: 304, 316 for corrosion resistance.
Key Advantages
- One-Step Forming: Complex geometries including the bushing hub and internal splines are formed in a single progressive stroke, significantly reducing unit cost.
- High Structural Integrity: The deep drawing process enhances the grain structure of the metal, providing superior strength compared to machined bushings.
- Customizable: Fully customizable dimensions, hole patterns, and internal profiles based on your CAD drawings.
Applications
• Automotive: Transmission systems, seat adjustment mechanisms.
• Industrial: Heavy-duty linkage assemblies, pivot points.
• Agricultural Machinery: High-torque rotating components.
